Photoshop and Printer driver setup for TestChart printing



Products              Price             Download

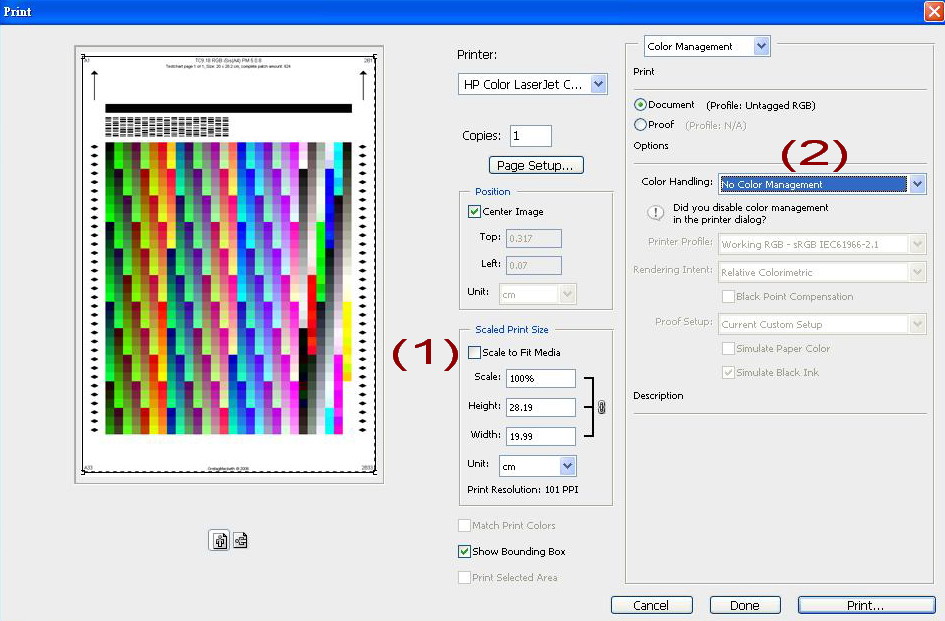

Example - Photoshop CS3 Settings for Testchart printing:

1.Open the Testchart File. Here we use "TC9.18 RGB iSis(A4).tif" as example.
2.Select the "Paper Type" and "Print Quality" of your printer.

Make sure the ICM is Disabled or OFF under your printer driver, the Epson/HP/Canon examples as shown below.

3.Never check the box "Scale to Fit Media"(1).
4.Choose "No color Management" under "Color Handling(2)".

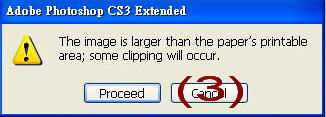

5.Photoshop may alert the Testchart A4 size is larger than your A4/Letter paper(3), ignore it and "Proceed" to print.

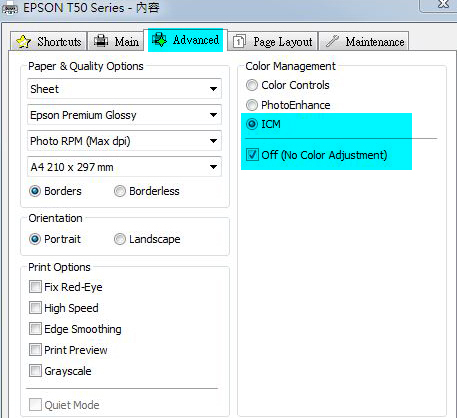

Example for Epson T50 Printer "ICM OFF" Settings:

1.Choose "Advanced" menu bar.
2.Select Paper Type.
3.Set Print Quality.
4.Under "Color Management" -> "ICM" -> check the "OFF" option.

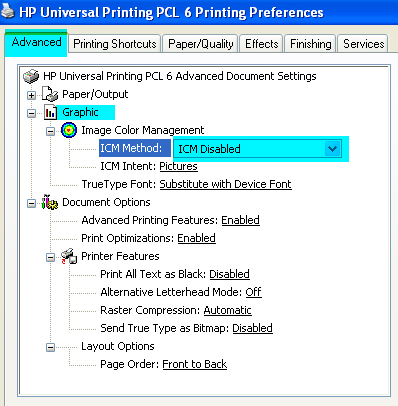

Example for HP Color Laserjet CM1312nfi MFP "ICM OFF" Settings:

1.Select Paper Type.
2.Set Print Quality.
3.Choose "Advanced" menu bar.
4.Under "Graphic" -> "ICM Method: ICM is Disabled".
Example for Canon PIXMA Pro9500 Mark II "ICM OFF" Settings:

1.Choose "Main" menu bar.
2.Select Paper Type.
3.Set Print Quality.
4.Under "Color/Intensity" -> "Manual" -> "Set".
5.Under "Matching" -> set "Color Correction" -> "None".
